KB01546 - AT-UHD-PRO3 Matrix Firmware Update Instructions

SKU: AT-UHD-PRO3-44M, AT-UHD-PRO3-66M, AT-UHD-PRO3-88M, AT-UHD-PRO3-1616M

Subject: AT-UHD-PRO3 Matrix Firmware Update Instructions

The PRO3-series of matrices can only be updated through the webGUI.

Needed items (webGUI):

  • New firmware - Downloaded from atlona.com
  • IP address of the matrix
  • Computer on the same network as the matrix
  • Username and password to access the webGUI of the matrix
Image result for red exclamation triangle IMPORTANT: Do not change the firmware file name, doing so may result in damage to the unit.
Image result for red exclamation triangle IMPORTANT: You must use only Mozilla Firefox or Microsoft Edge when upgrading the firmware, due to incompatibilities with other browsers i.e. Google Chrome or Internet Explorer.

Updating

  1. Verify that an Ethernet cable is connected between the matrix and the network.
  2. Type the IP address of the matrix into a web browser, as shown in the example below.
         Note: Computer must be on the same network as the matrix to access through IP.



    Image result for red exclamation triangle IMPORTANT: If any stability issues are experienced, disable any anti-virus or firewall that may be interfering with network communication to the matrix. Once set up is done and the webGUI is no longer being used, the firewall and anti-virus can be re-enabled. For assistance refer to KB01141 - Unable to access web interface of an Atlona device, however, pinging the unit does work.

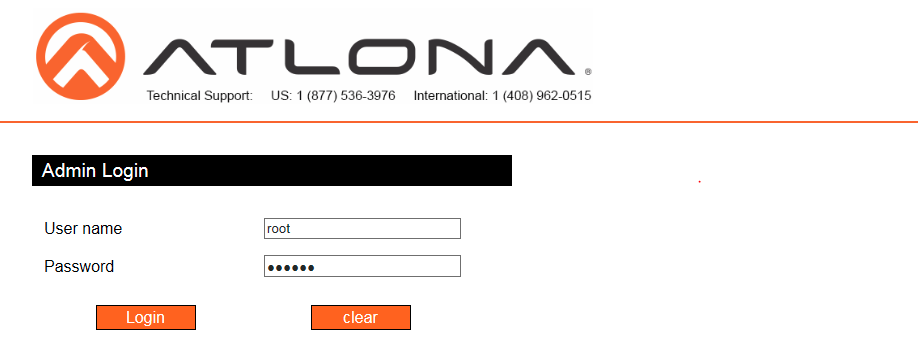

  3. The login screen will be displayed. Login using the username and password. The default login credentials are:
         Username: root
         Password: Atlona

    Image result for red exclamation triangle IMPORTANT: Before updating the firmware, perform steps 4 - 6 to save the system settings to a file. Note that if the UI Firmware field displays version 1.6.03 (or lower), then the settings file will not be able to be read by version 16 firmware, or higher. In this case, take screenshots of each page in order to save the information.

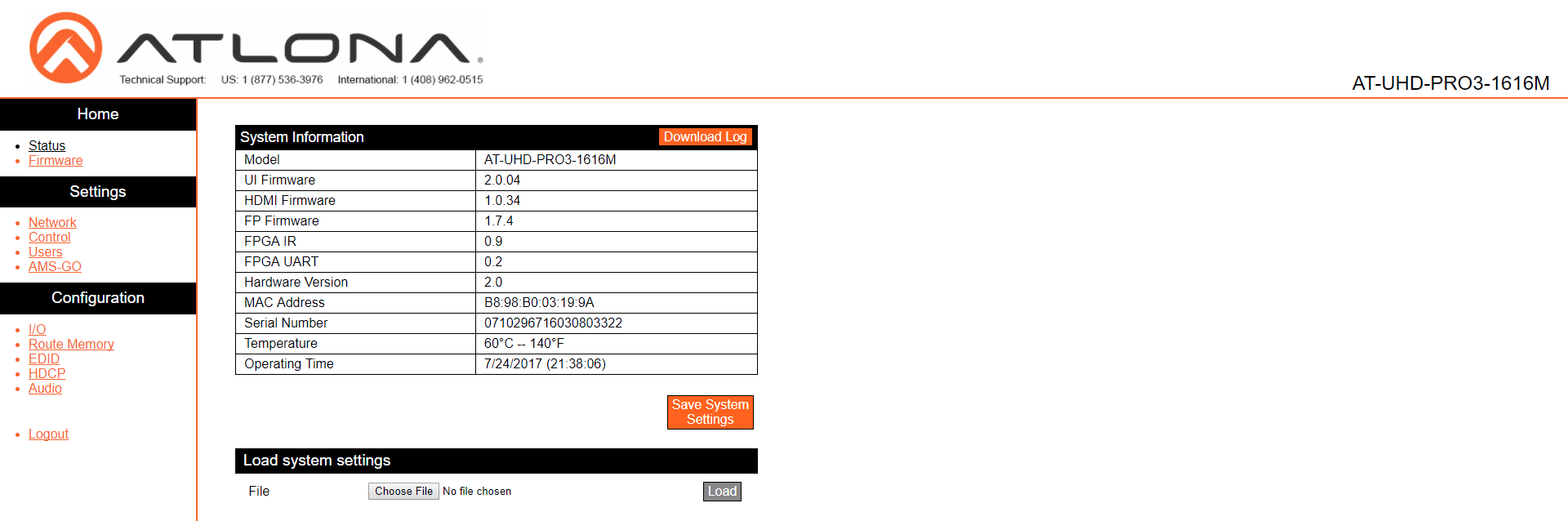

  4. Click Status on the left side of the screen.
  5. Click the Save System Settings button.

  6. The Save As dialog box will be displayed. Select the folder where the file will be saved. The default name of the file is download.json. Click the Save button to save the file.
  7. Click Firmware, on the left side of the screen.

  8. Click the Matrix File Choose File button, to select each firmware file. Select and upload each file in the following order:

    1. ATLMtxFWpack_PRO3-UI.pkg
    2. ATLMtxFWpack_PRO3_FPHD.pkg
    3. ATLMtxFWpack_PRO3_FPGA.pkg

      Image result for red exclamation triangle IMPORTANT: Always upload the ATLMtxFWpack_PRO3-UI.pkg first. This file monitors and verifies the upgrade process for both the ATLMtxFWpack_PRO3_FPHD.pkg and ATLMtxFWpack_PRO3_FPGA.pkg files.
  9. Click the Update button. A progress bar will be displayed during the update process.
  10. Once the update has processed, relogin to the webGUI.
  11. Repeat steps 7 through 10 for each of the three firmware files.
  12. After all three files have been updated, power off the matrix using the power switch located on the rear of the matrix. After 10 seconds, restore power to the matrix.
  13. If a system settings file was saved, in Step 6, click the Status link, select the settings file, click the Choose File button, then click the Load button.

Valens Firmware Update

If reaching out to technical support regarding various video related challenges, the optional Valens firmware update procedure becomes required for HDBaseT Monitoring.
     Note: Updating the Valens firmware can take up to 25 minutes.

  1. Follow steps 1 through 7, beginning on the first page of this guide.
  2. Select the Valens firmware file. There are two files required for the Valens update. It is recommended that the files be uploaded, one at a time, in the following order:
    1. ATLMtxFWpack_7-Jul-17_VS010_4.pkg
    2. ATLMtxFWpack_7-Jul-17_VS100_5.pkg
  3. After each Valens file has been updated, power off the matrix using the power switch located on the rear of the matrix. After 10 seconds, restore power to the matrix.

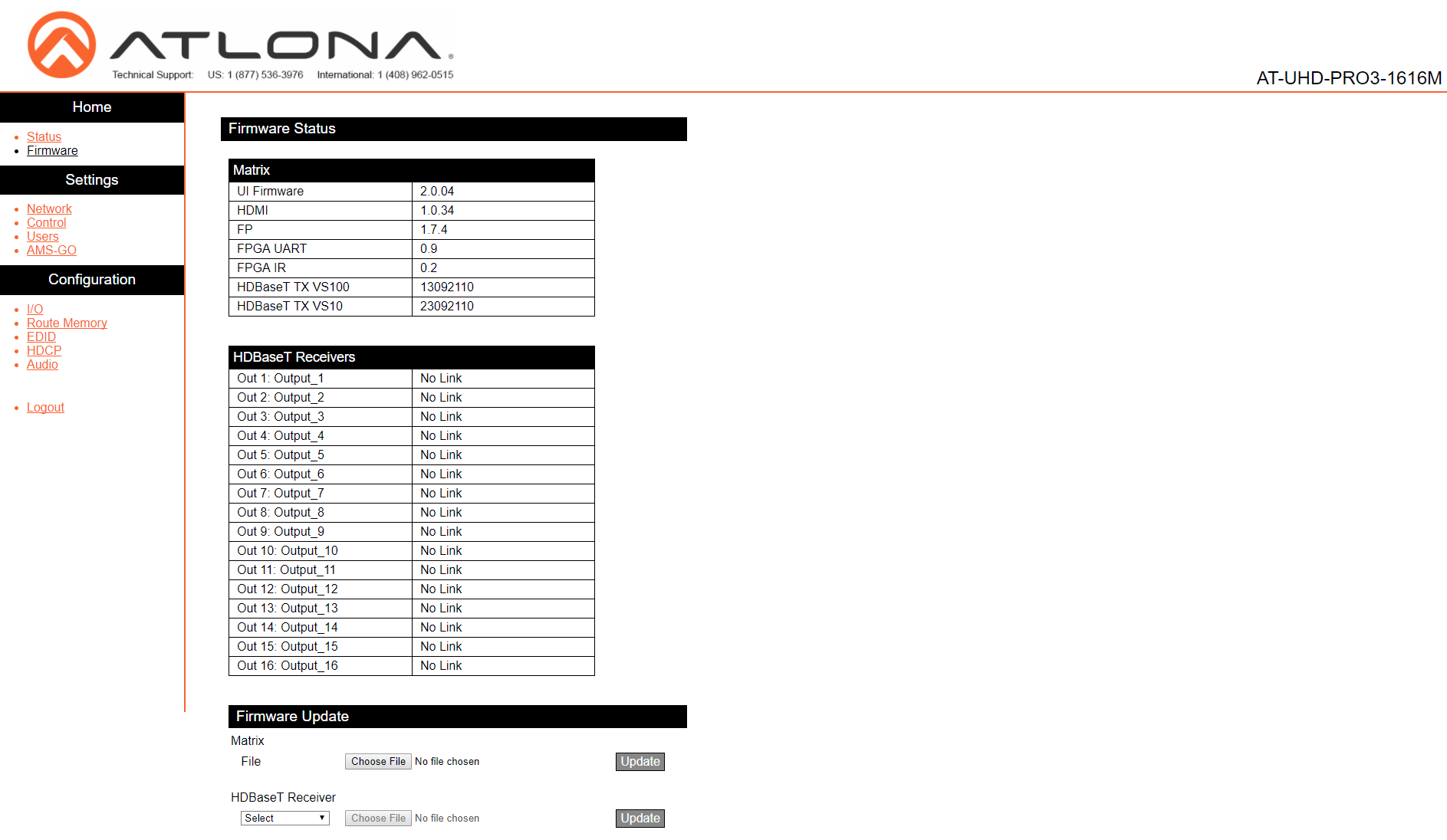

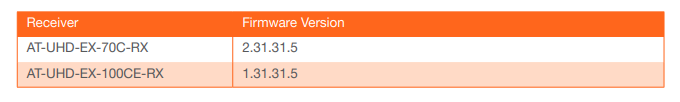

  4. To verify that whether or not a Valens update has taken place, click Firmware, in the web GUI, and read the information displayed under Firmware Status > Matrix:
