Where to Find sliders and DSP Mutes in Velocity CUI Editor:
Audio Sliders can be found on the left hand "Add Components" column under "Sliders".
Vertical and Horizontal options are Available
To accompany the Audio Sliders we on the left hand "Add Components" column under "Panel Widgets", Where we find "DSP Mute" buttons available.
Assigning Sliders Properties:

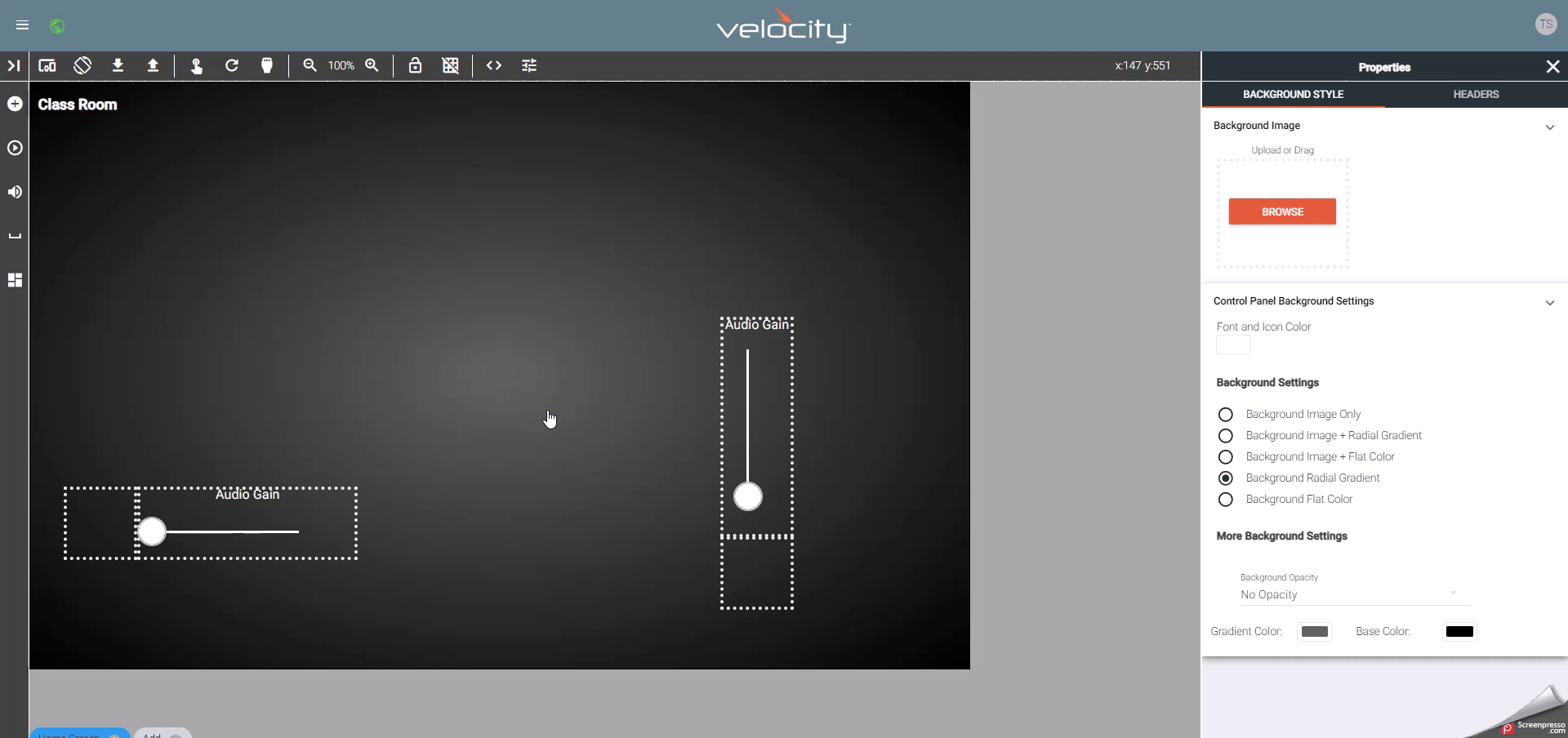

When you select the slider in the CUI the "Properties" Column on the right will populate with the Properties available on the Slider.

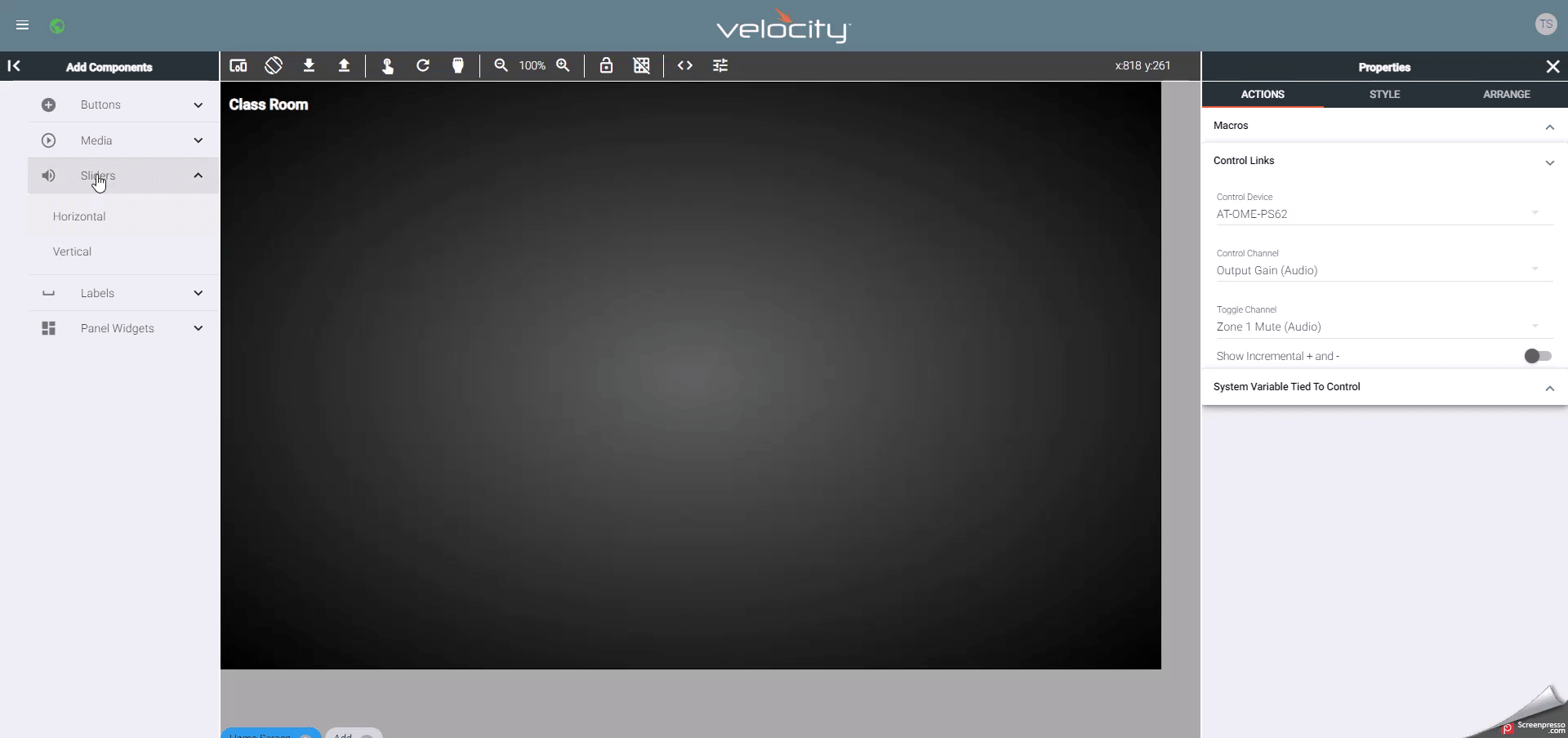

For DSP assignment we Start with the "ACTIONS" Tab in the "Properties" Column, and select "Control Links".
Under Control Links we see "Control Device", "Control Channel" and "Toggle Channel" that we will look into.
"Control Device": This will be the Device where the volume adjustment commands are available. In my example I chose the PS62 I had added to my project.
"Control Channel": Which Audio Level will this Slider be Linked to. Depending on the DSP or Velocity Driver it might be tricky to discern the different levels as they show as the Control name and Component name in the Driver. PS62 does show all as "Output Gain (Audio)" but will be in the same order in the driver list.
"Toggle Channel": This will send an unmute to this channel should the DSP itself not do this on its own on level change. Mostly this is not used unless the DSP will change volume with out unmuting itself.
Label for the Slider can be altered under the "STYLE" Tab in "Properties" Column.
Assigning DSP Properties:
When you select the DSP Mute in the CUI the "Properties" Column on the right will populate with the Properties available on the button.
For DSP assignment we Start with the "ACTIONS" Tab in the "Properties" Column, and select "Control Links".
Under Control Links we see "Control Device", "Control Channel" and "Toggle Channel" that we will look into.
"Control Device": This will be the Device where the Mute commands are available. In my example I chose the PS62 I had added to my project.
"Control Channel": Which Mute will this button be Linked to.
"Icon Type": Mute Audio and Light switch are the options available. When the linked control changes the Icon will change between the unmuted and muted icons or light on and light off.
Label for the Mute button can be altered under the "STYLE" Tab in "Properties" Column if needed.
