Rauland TCU integration

Rauland Integration with Velocity



Note: Velocity Gateway & Rauland system need to be on the same network

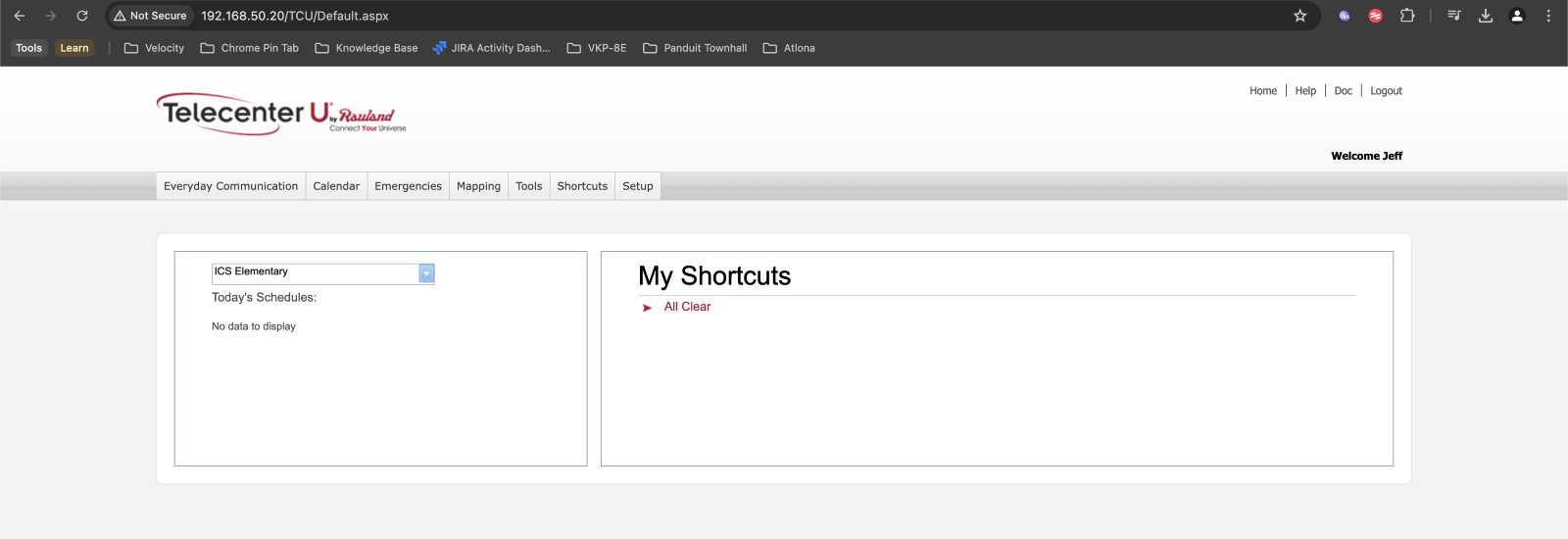

  • Navigate to the IP address of Rauland Telecenter communication System



A screenshot of a computer

Description automatically generated



  • Go to Set up tab from the top menu. Navigate to IT Set Up and then select Users.

  • Click on Add New User. Fill out the details.

A screenshot of a computer

Description automatically generated

  • User Types:

  • Local: For any users

  • Active Directory: Mainly will be used by IT team

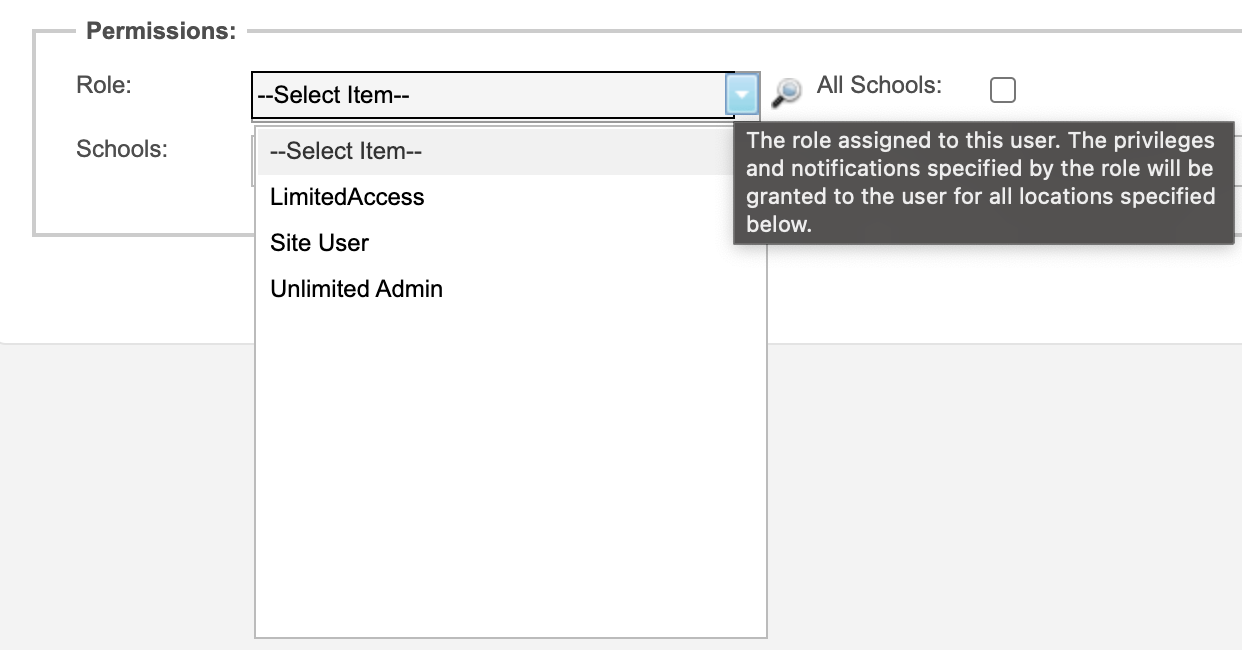

  • Selecting role: Recommended to use Unlimited Admin to get full access

A screenshot of a computer

Description automatically generated



  • After creating a user, you will see the user added under users. For Instance,

  •

  • Click on Generate API Token for the user that was added to create API KEY

A grey rectangular sign with white text

Description automatically generated

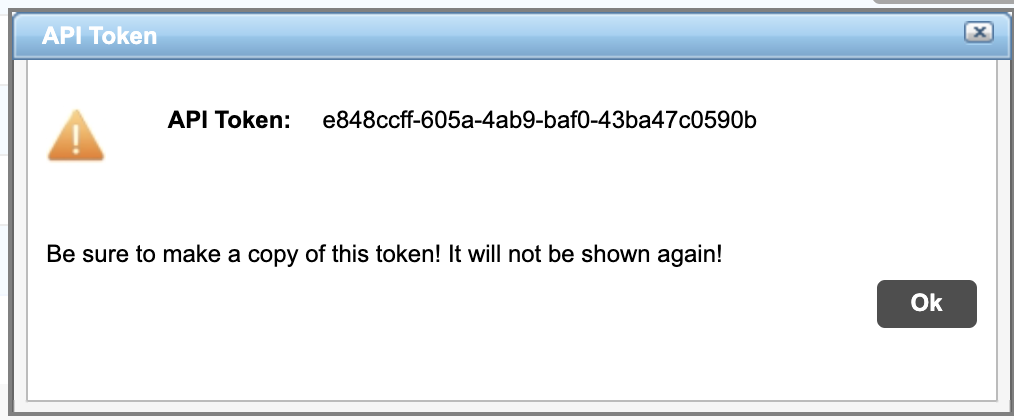

  • Example of the API Key. Note: Make sure to copy and save the API token

A screenshot of a computer

Description automatically generated



Velocity Gateway Set up:

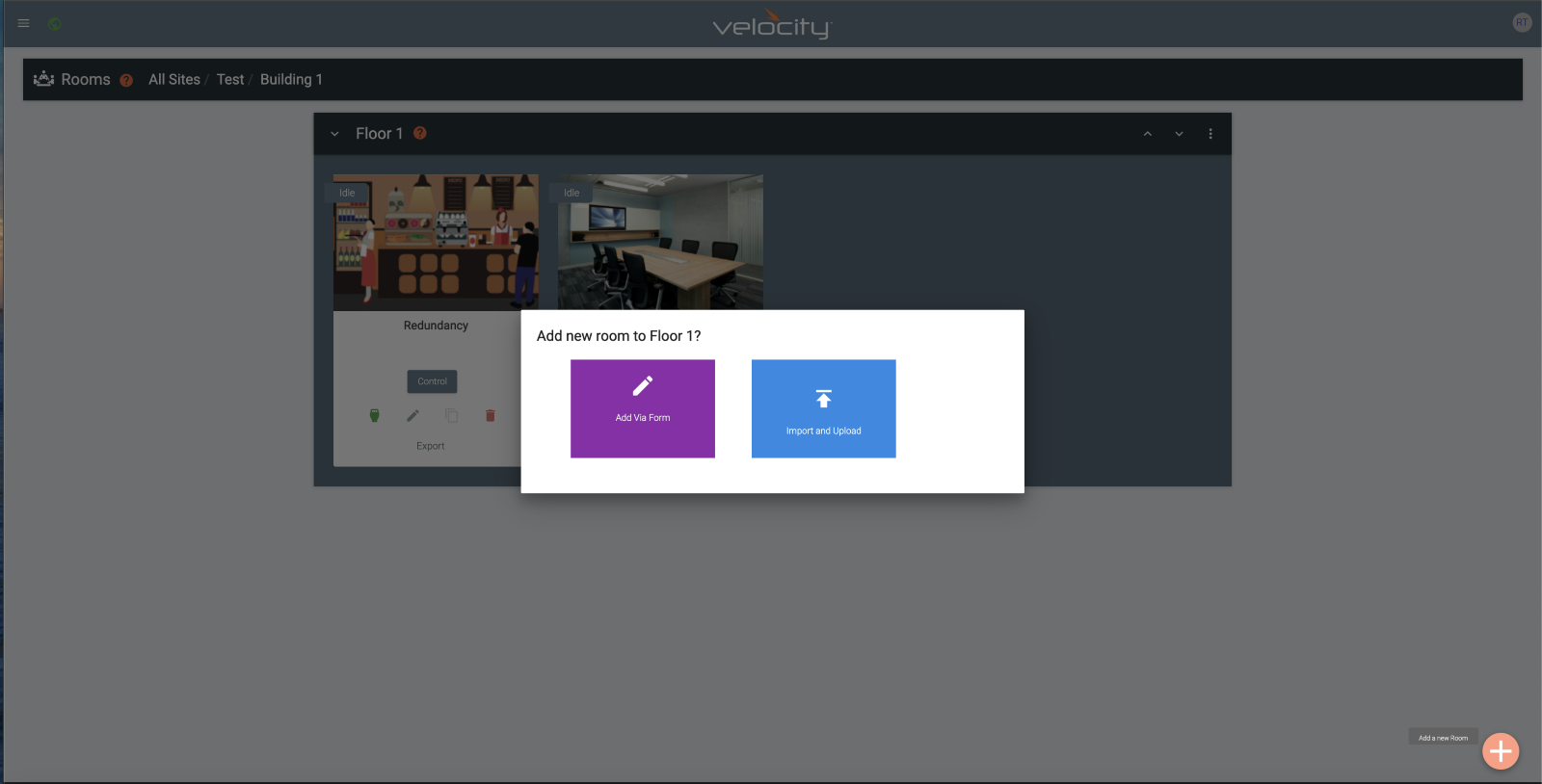

  • Set up a Velocity gateway. Create a Site & then Add a new Room using + icon.

A screenshot of a computer

Description automatically generated

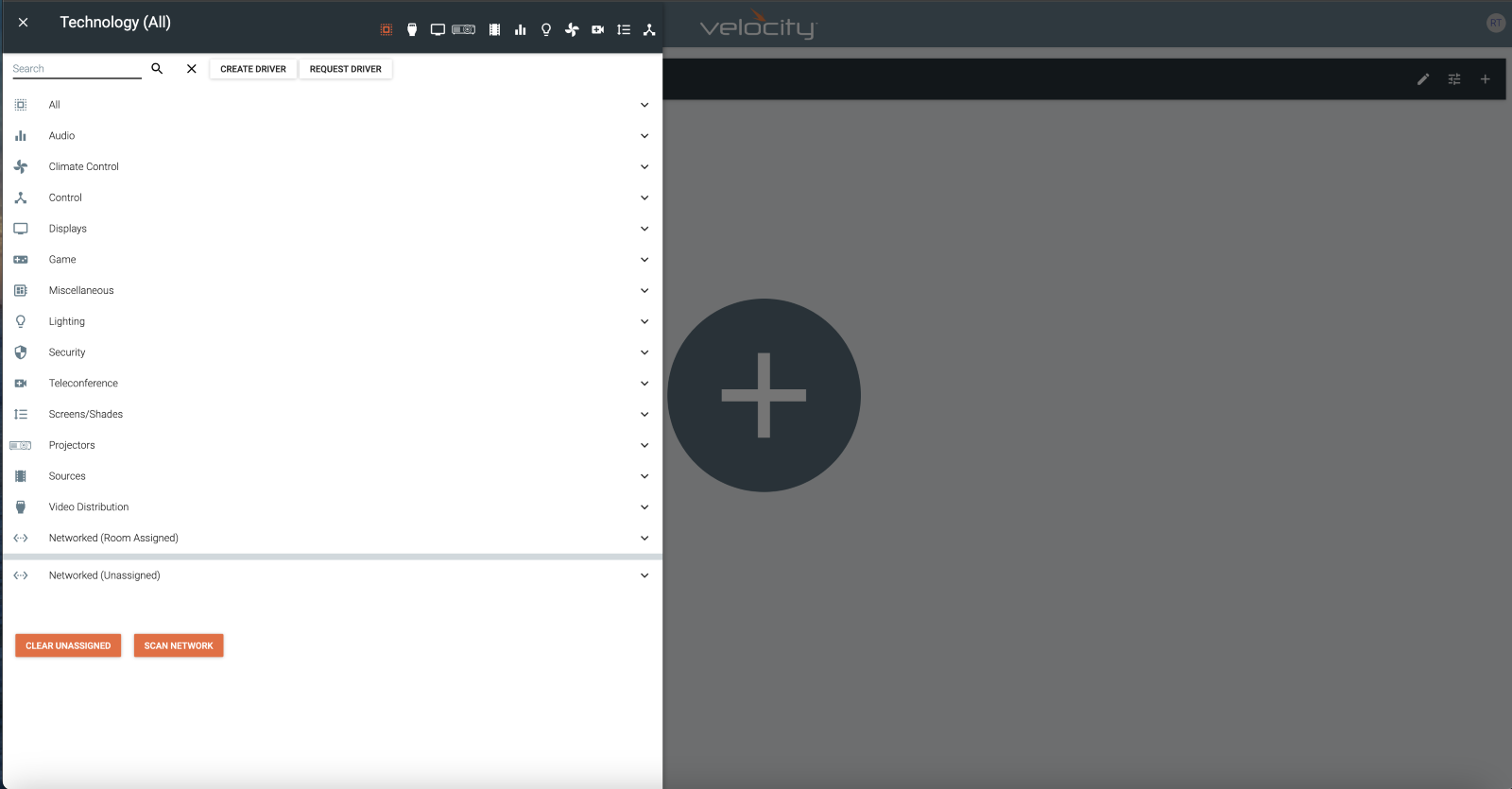

  • Add Technology to a room using + icon

A screenshot of a computer

Description automatically generated

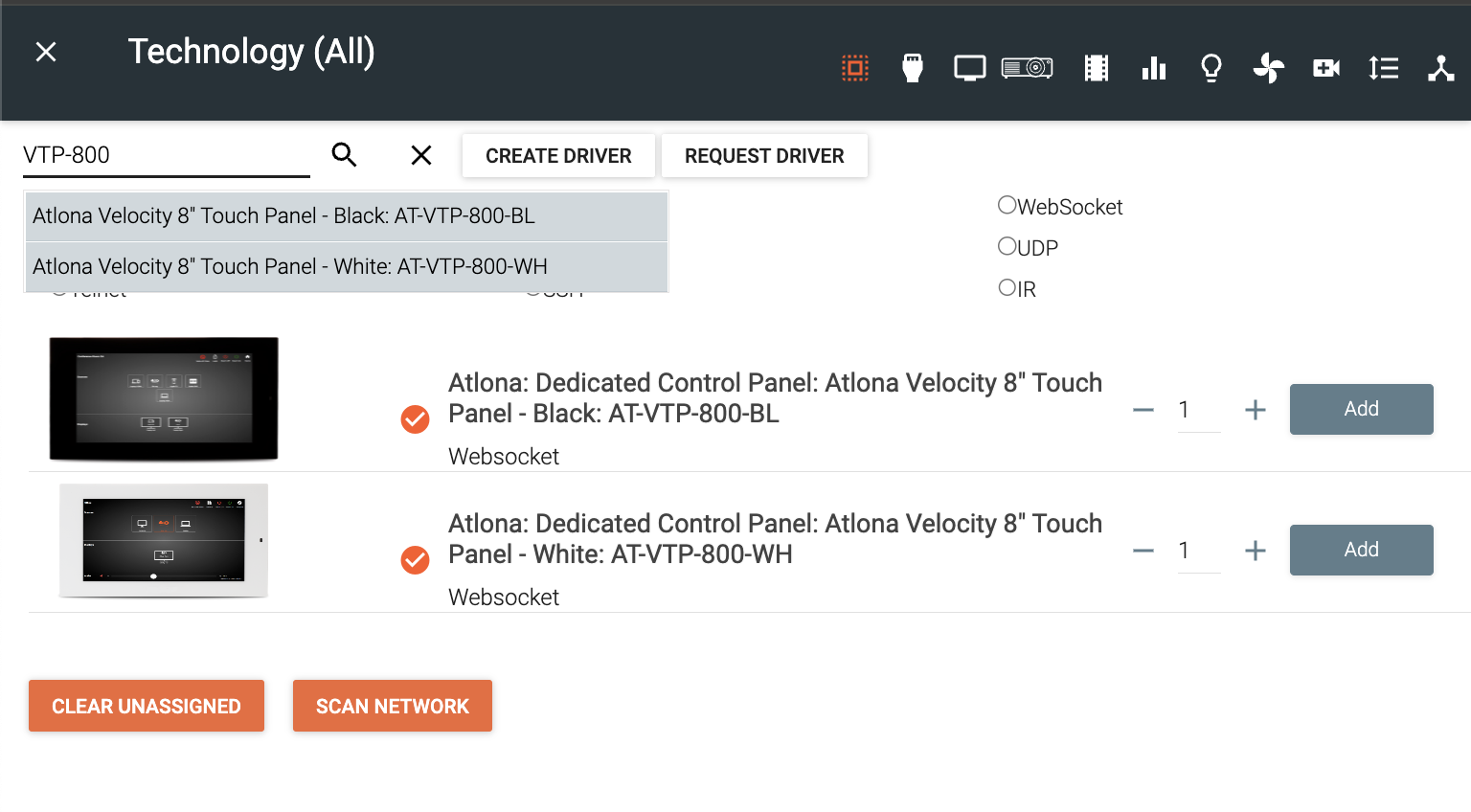

  • Search and add “Rauland Telecenter Communication System” to the room and a touch panel (for instance, AT-VTP-800)

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

A screenshot of a phone

Description automatically generated

  • Modify Rauland device card. Click on the pencil icon to edit room control

  • Enter the IP Address and API Key (which was copied in the previous steps). Port number would be already added as 8443.

A screenshot of a computer

Description automatically generated

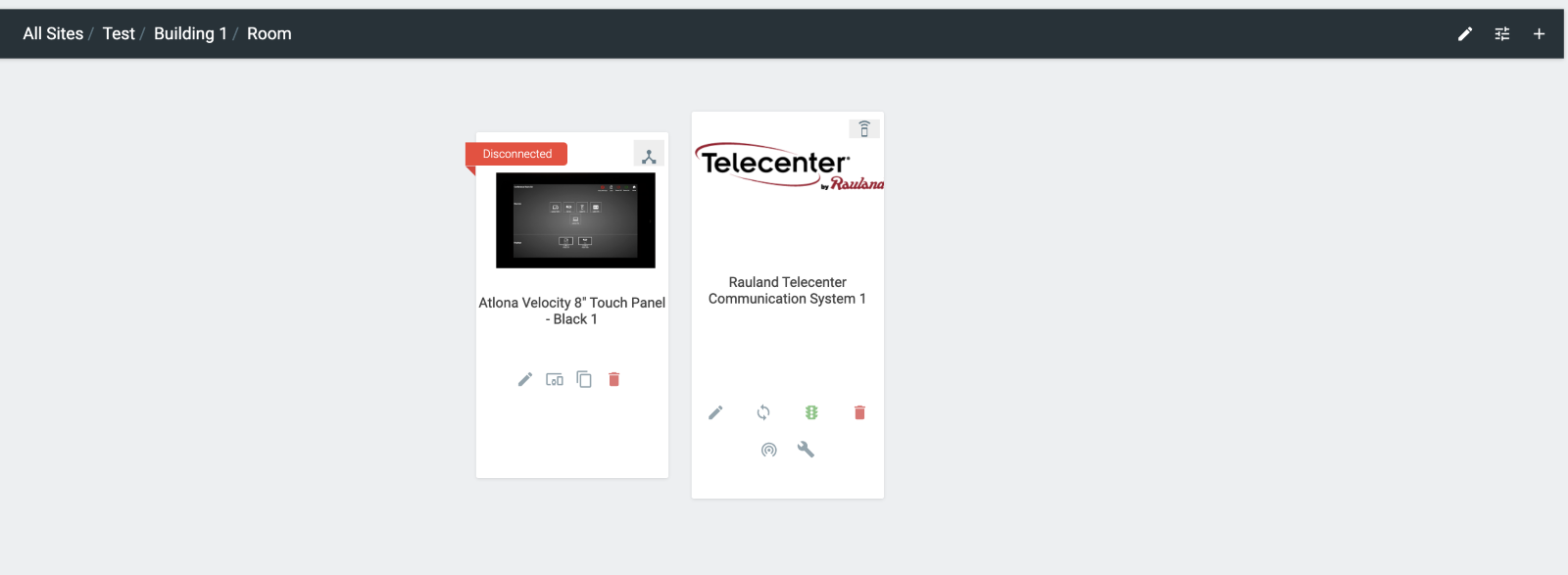

  • All the devices in the room are connected.

A screenshot of a phone

Description automatically generated

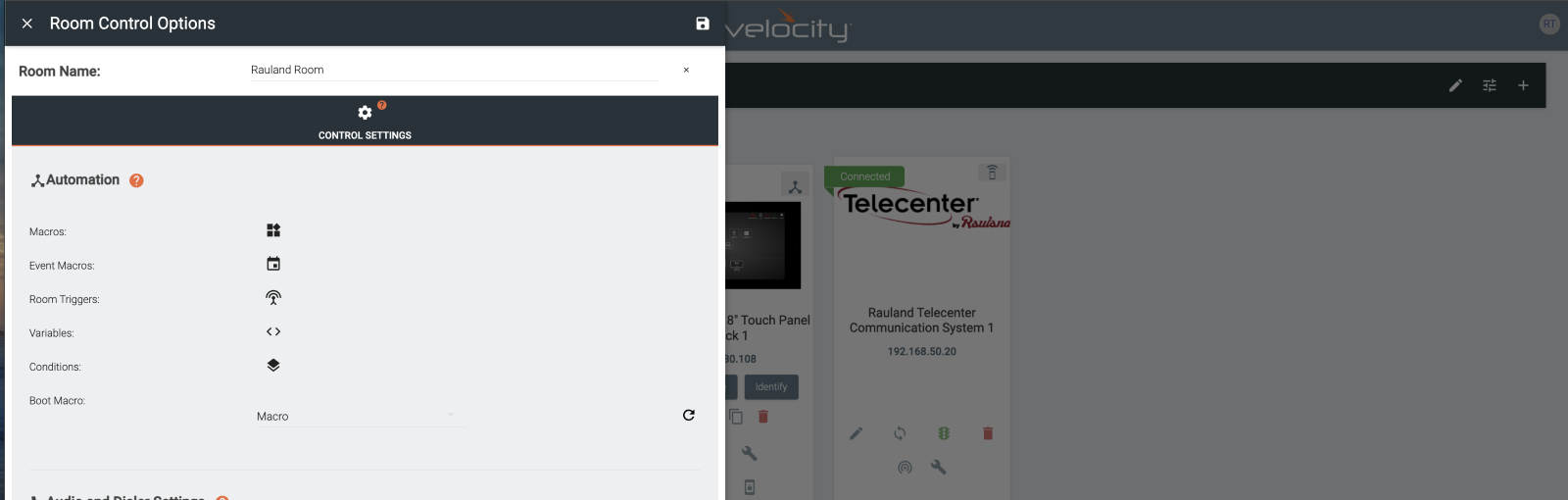

  • Go to Room Control Option (+ icon) build Macros and Device Variables are available for Rauland system

A screenshot of a computer

Description automatically generated

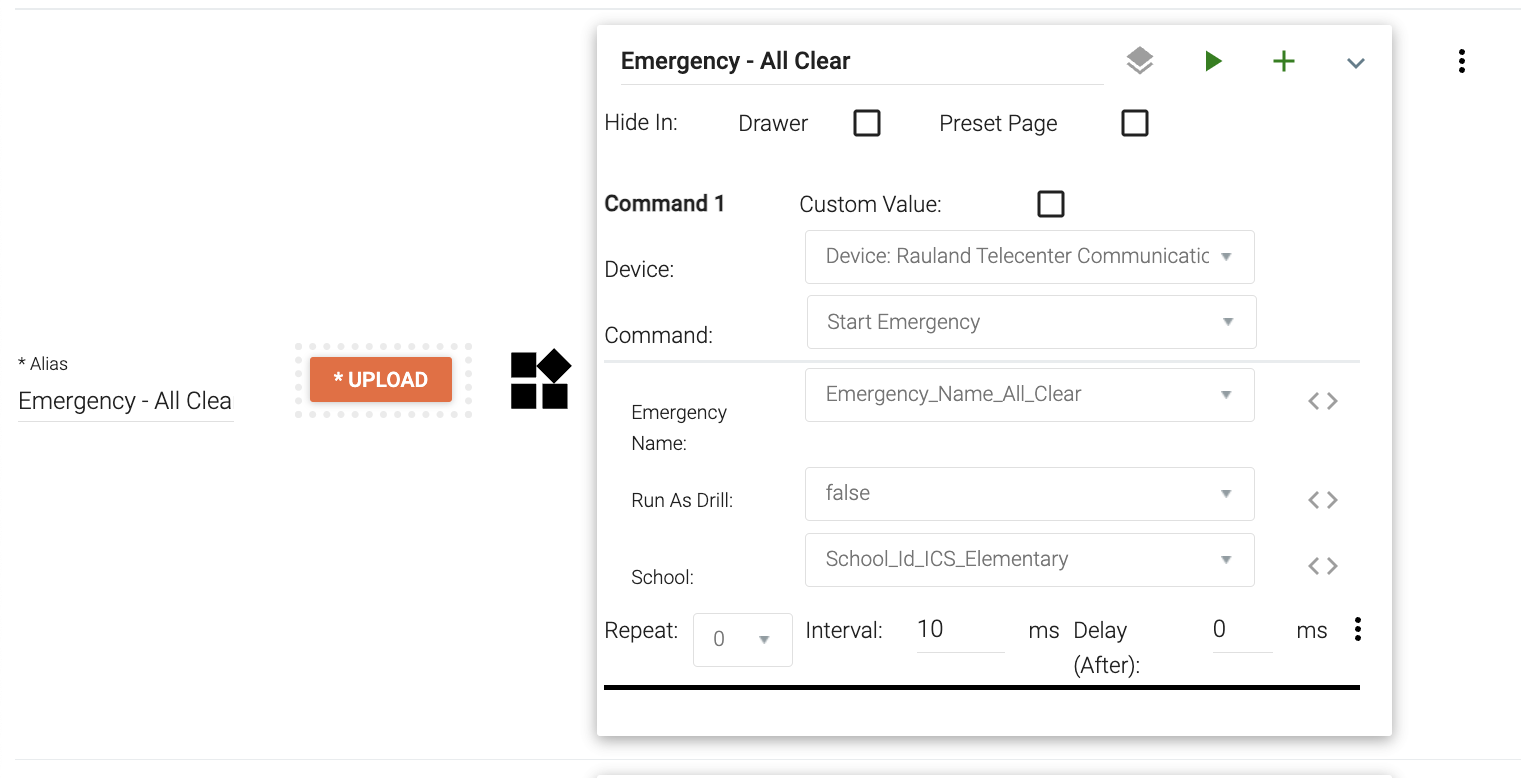

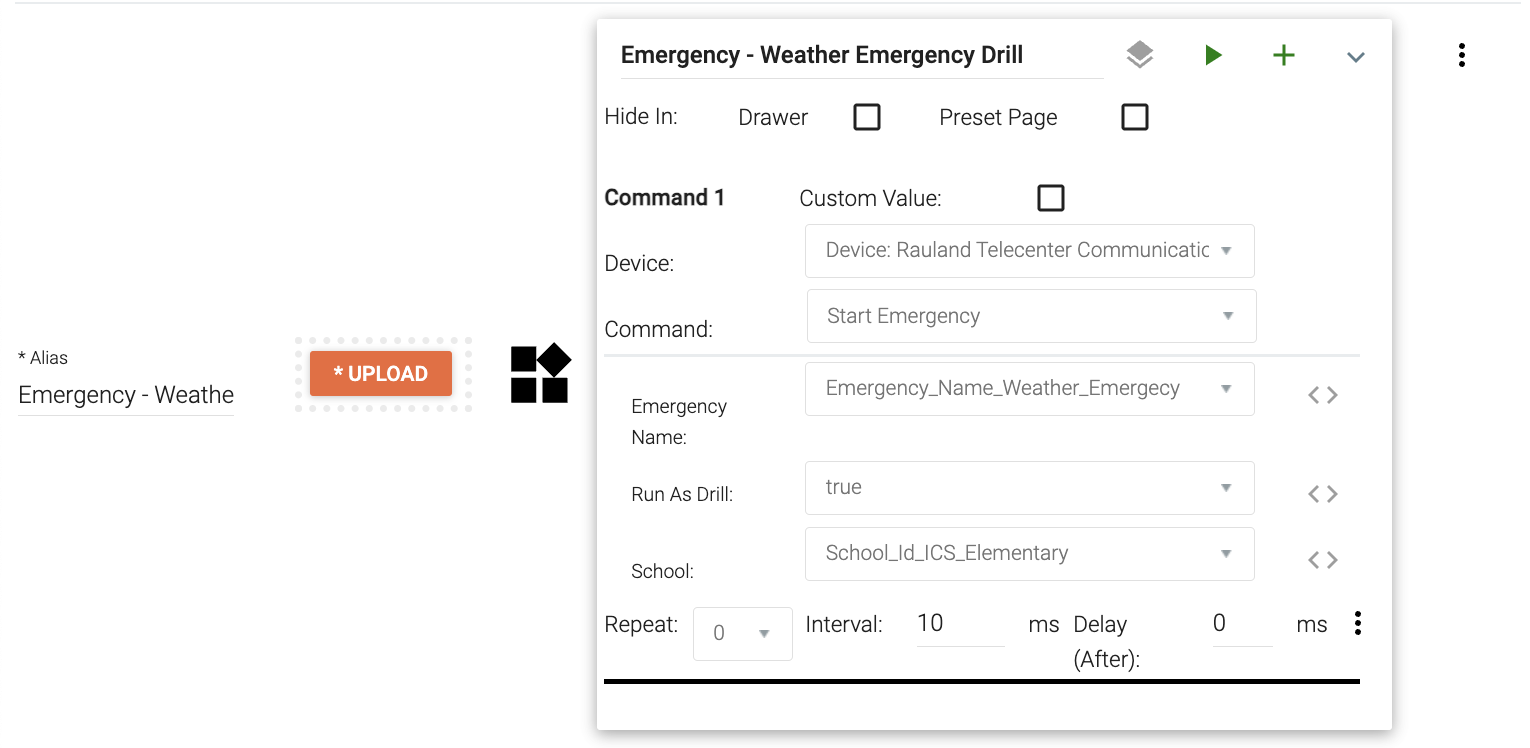

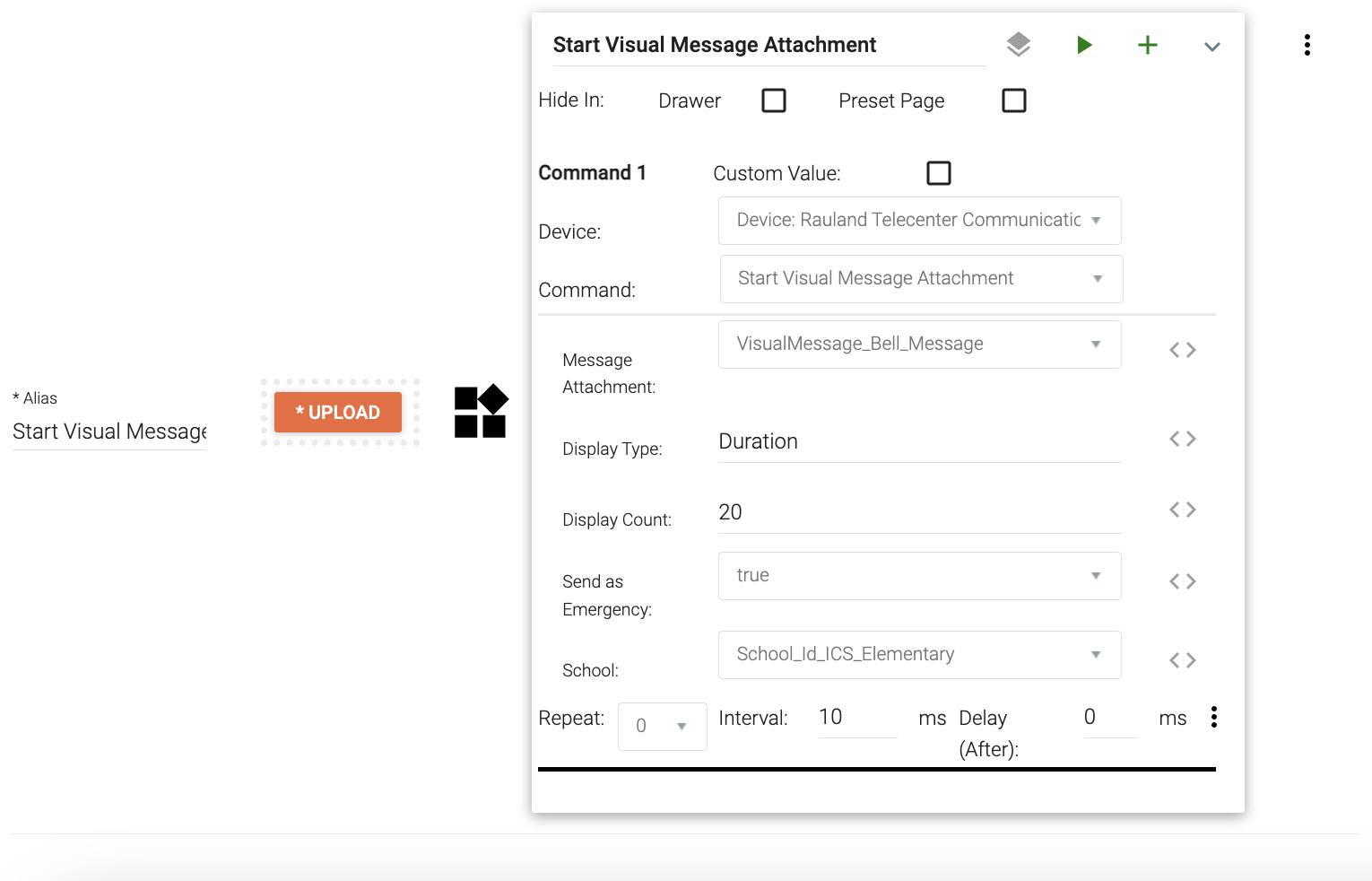

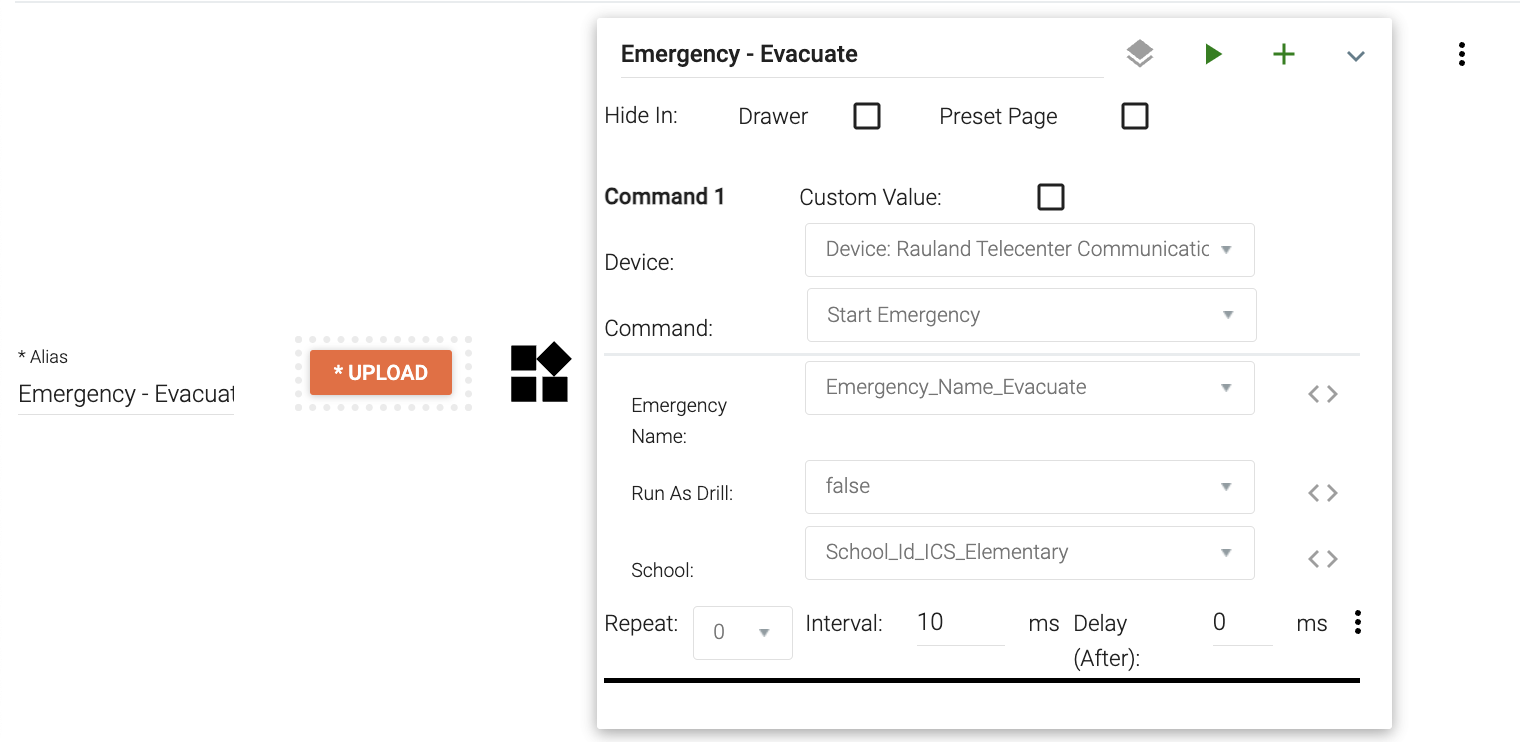

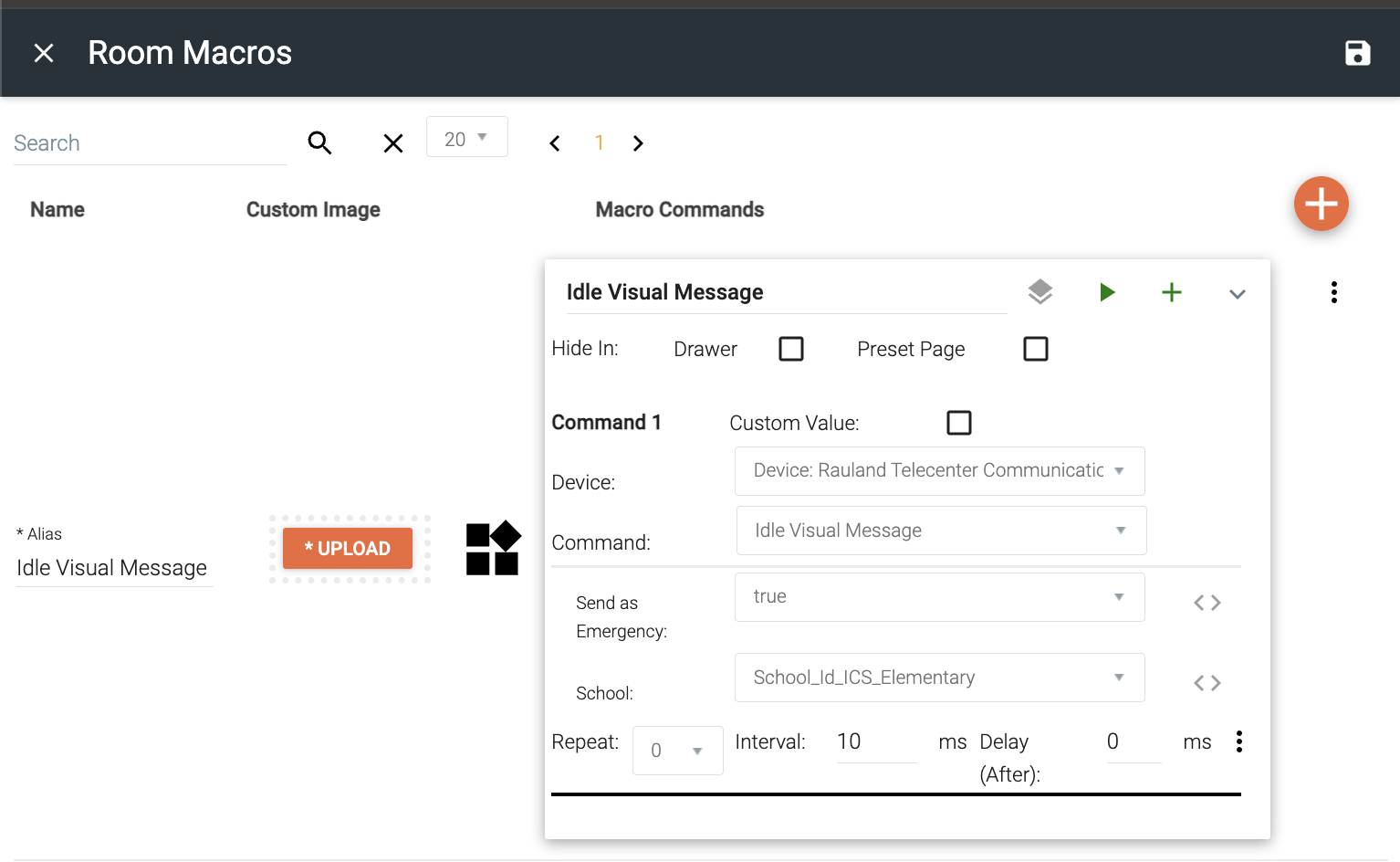

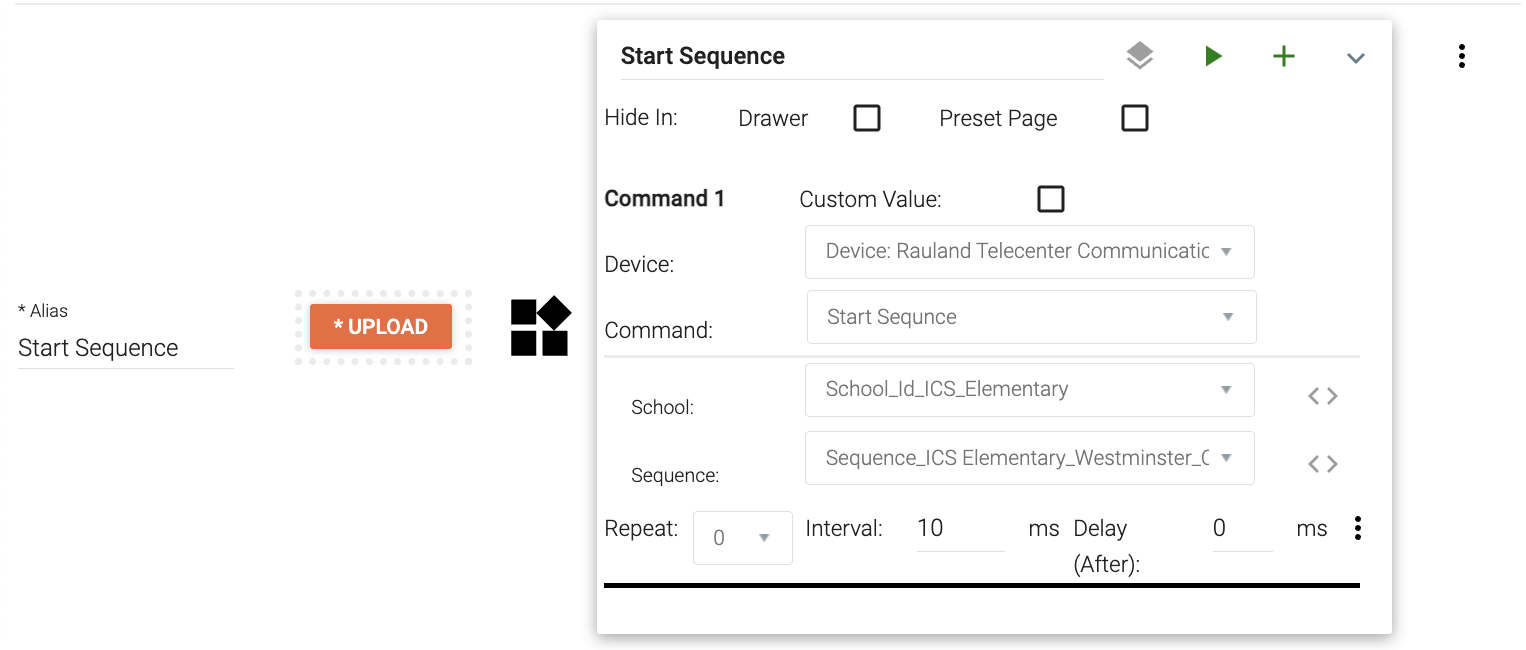

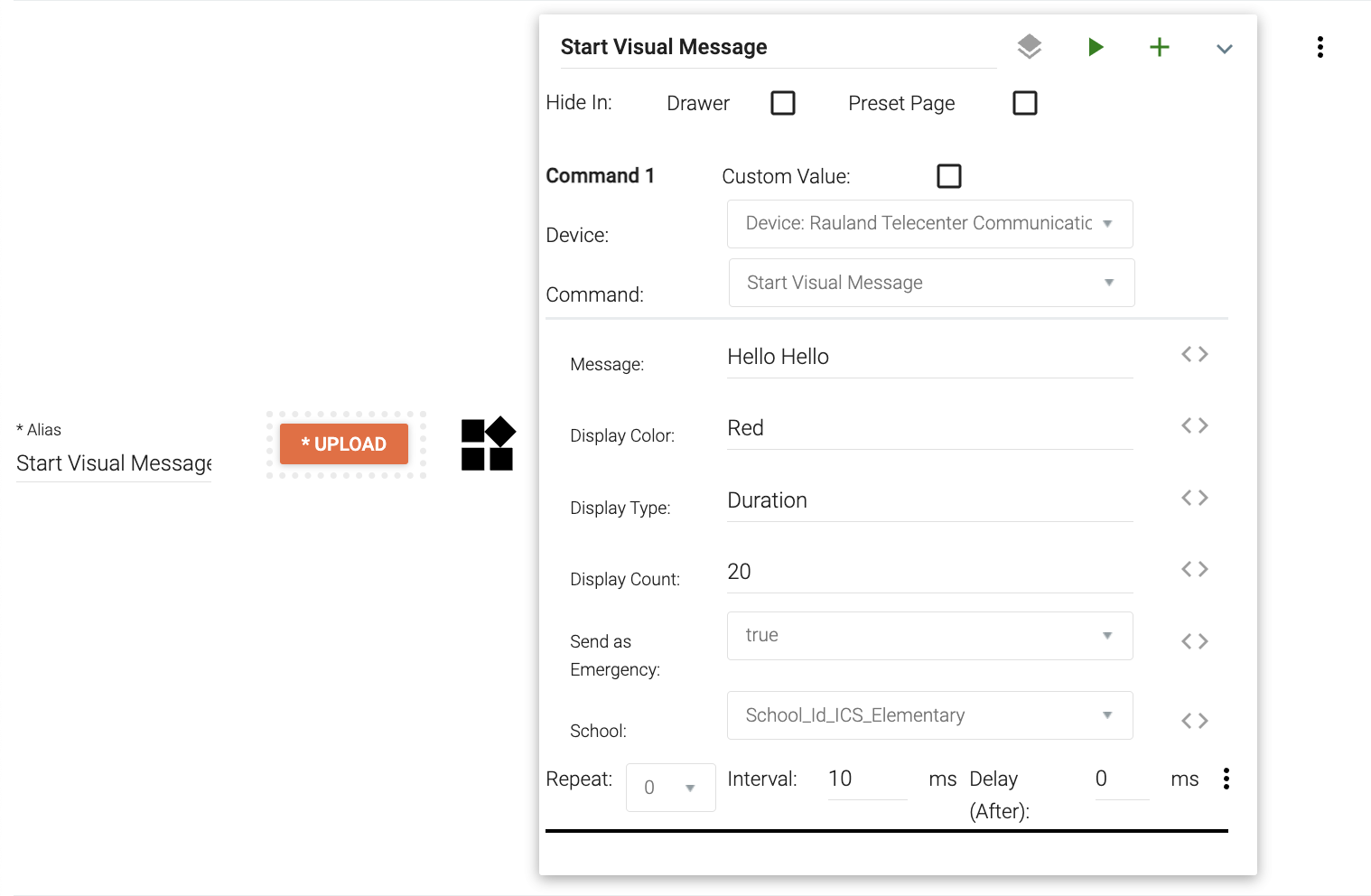

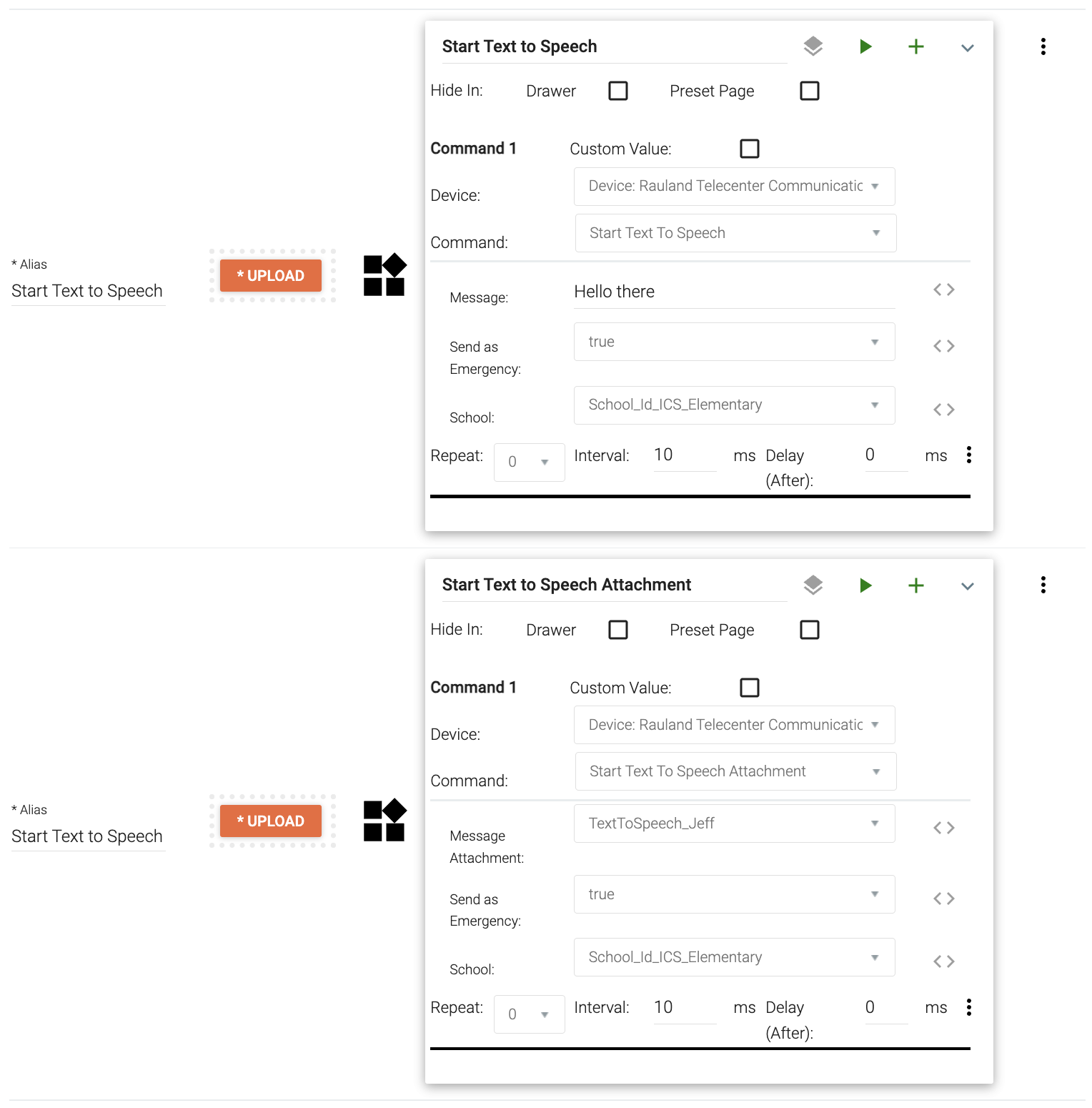

  • Some examples of Macros

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

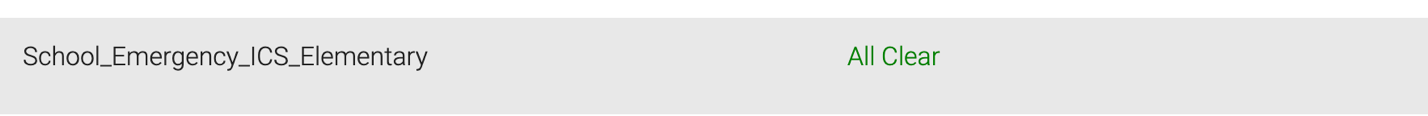

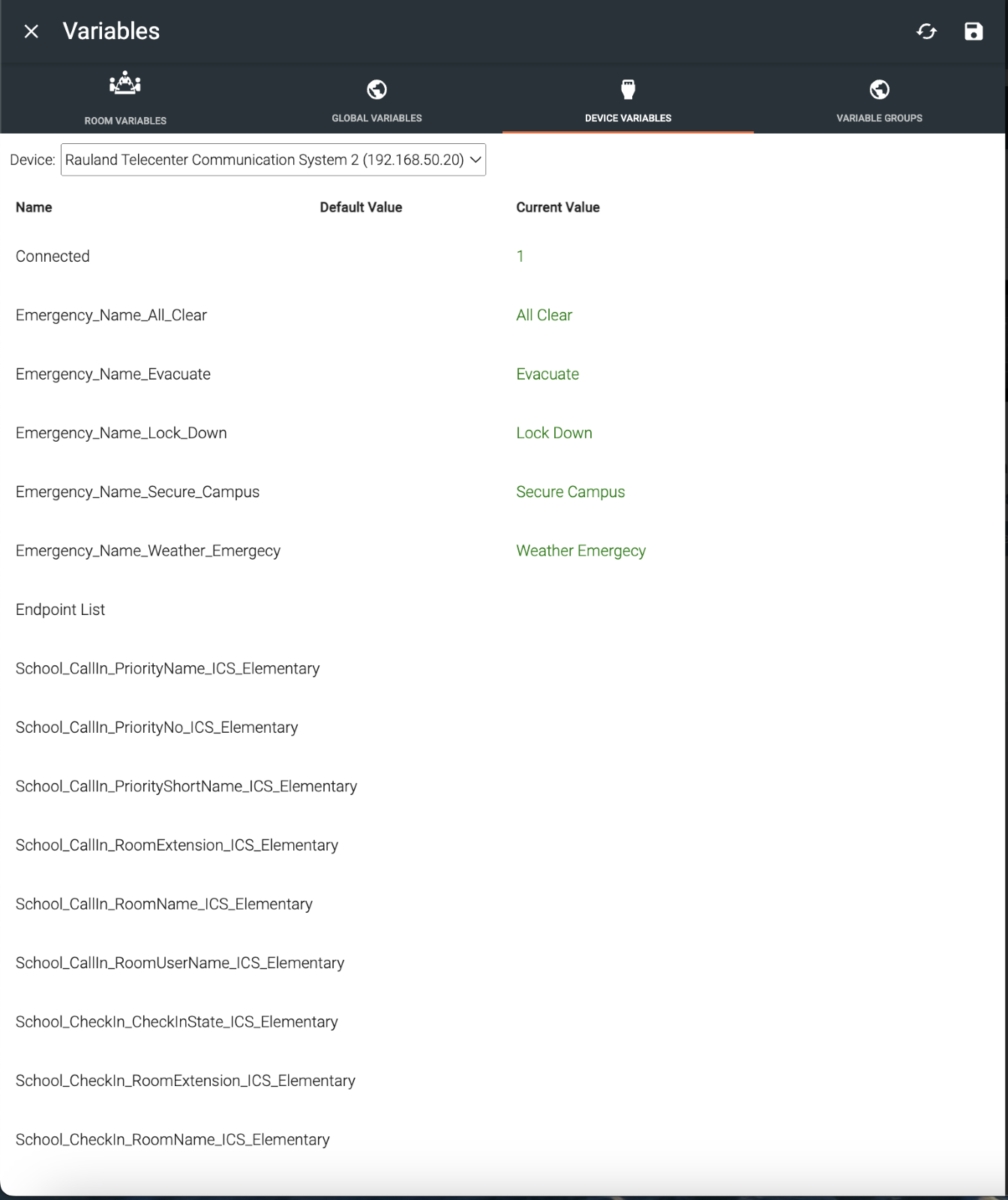

  • Navigate to Device Variables to see variables

A screenshot of a computer

Description automatically generated

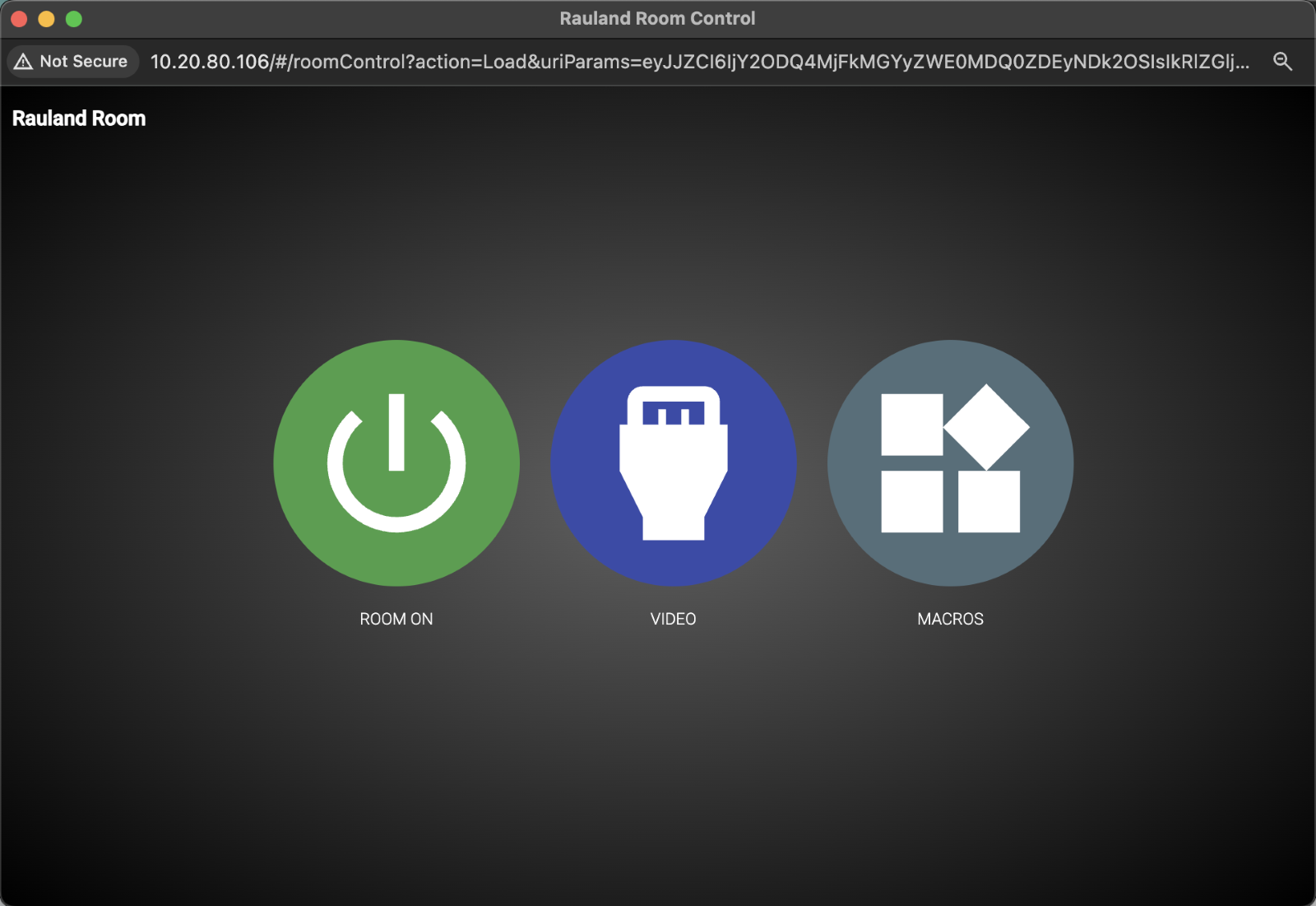

  • Set up VTP-800 to execute all the macros

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

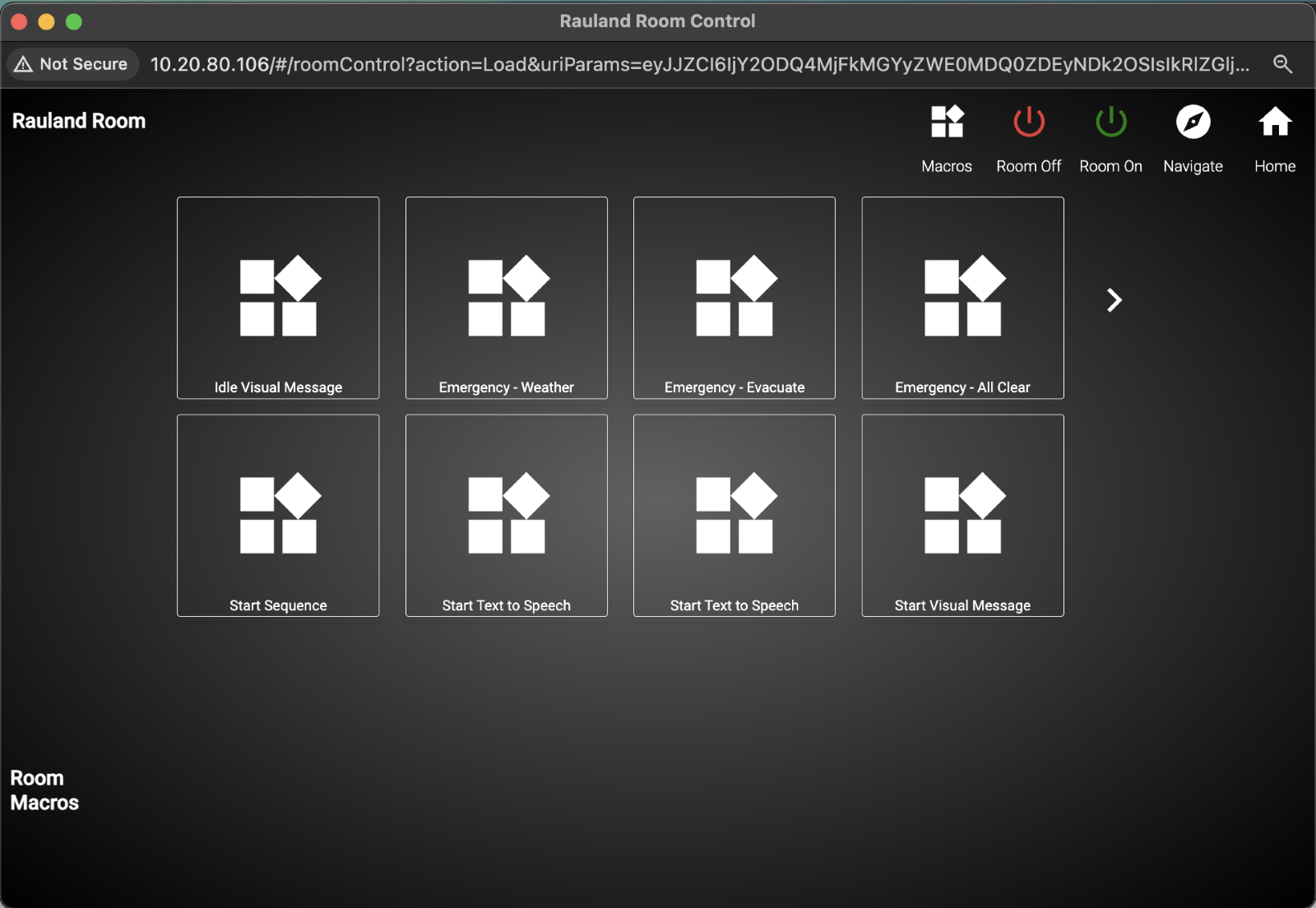

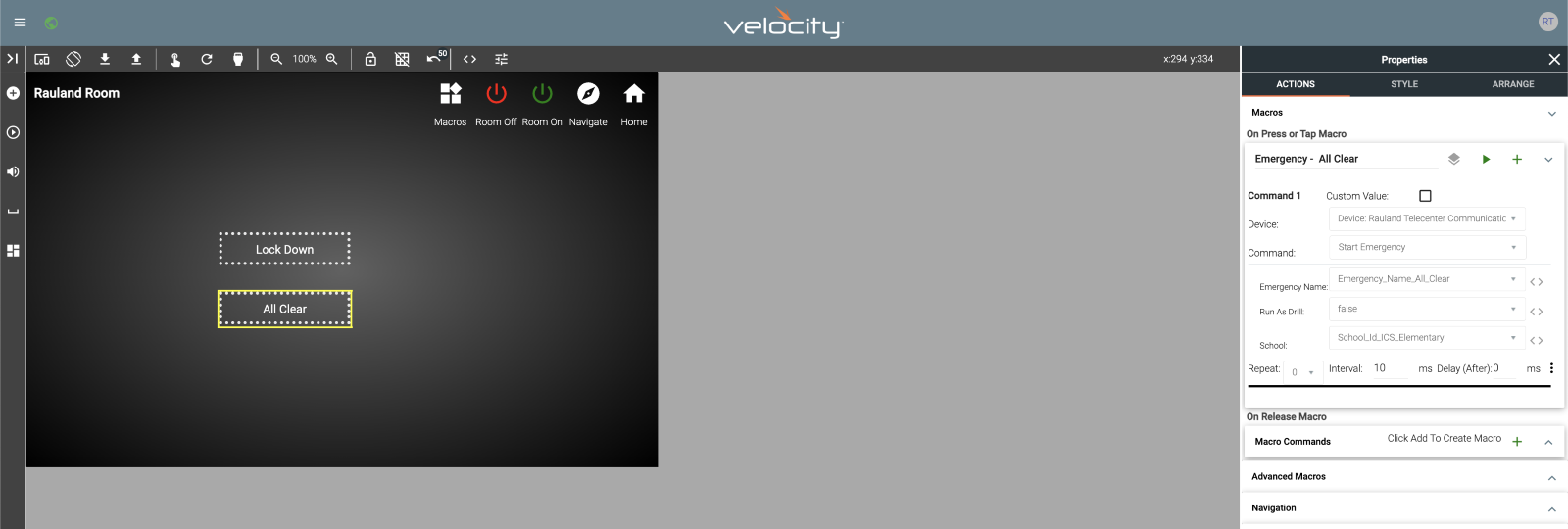

  • Set up a Custom UI on VTP-800. Example, CUI Set up to test variables:

A screenshot of a computer

Description automatically generated
